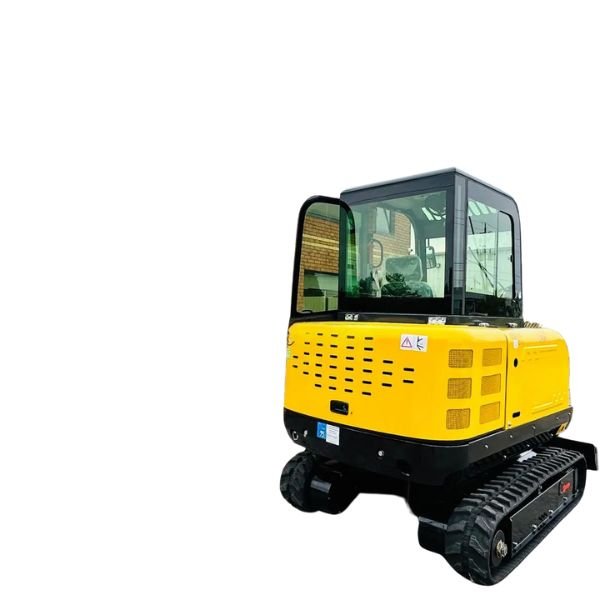

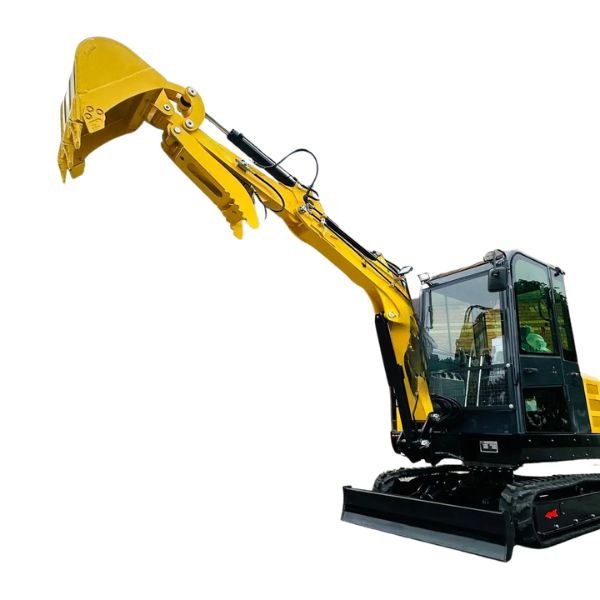

Excavator 3.5 Ton with Hydraulic Thumb, Swing Boom, Cab(AC/Heat)

For Price Please Call

• Machine Operating Weight (kg): 3500
• Bucket Capacity (m³): 0.1
• Travel Speed Low/High (Km/h): 0-1.6
• Gradability (%): 30
• Ground Pressure (Kpa): 36.4
• Maximum Digging Force (kN): 22.5
• Maximum Digging Radius (mm): 4576
• Maximum Digging Depth (mm): 2310
• Maximum Digging Height (mm): 3700
• Maximum Unloading Height (mm): 2574
• Maximum Deflection Angle (°): 122°
• Theoretical Fuel Consumption (L/h): –
• Fuel Tank Capacity (L): 60
• Hydraulic Tank Capacity (L): 52

Engine

• Engine Brand: Kubota
• Engine Model: Kubota D1703
• Maximum Horsepower (ps): 25
• Maximum Power (Kw): 18.2
• Maximum Speed (rpm): 2200
• Displacement: 1.6
• Number of Cylinders: 3
• Cooling Method: Water Cooling
• Engine Oil Change Amount (L): 5.5
• Fuel Form: Diesel Fuel
• Fuel Grade: 0/-10

Dimensions

• Transport Length (mm): 3520
• Transport Width (mm): 1450
• Transport Height (mm): 2352
• Counterweight Ground Clearance (mm): 530
• Boom Length (mm): 2012
• Arm Length (mm): 1110
• Bucket Width (mm): 500
• Bulldozer Blade Width (mm): 1450

Hydraulic System

• Main Pump Type/Model: Variable Piston Pump/28
• Main Pump Brand: Taifeng
• Main Pump Maximum Flow (L/min): 62
• Multi-way Valve: 8-way Hydraulic Control Valve
• Multi-way Valve Brand: Taifeng Hydraulics
• Rated Set Pressure (Mpa): 18
• Maximum Set Pressure (Mpa): 20
• Travel Hydraulic Motor Type: BWV1000WCD
