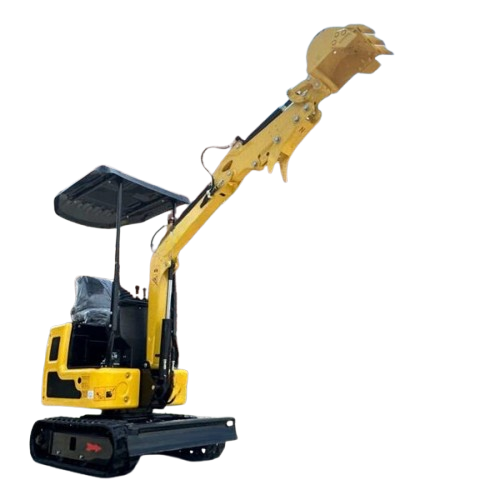

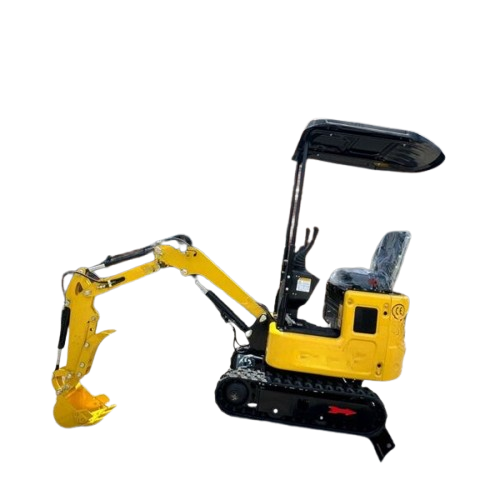

Mini Excavator 1T Briggs & Stratton

For Price Please Call

Performance Parameters

• Engine: Briggs & Stratton (USA engine)
  • Power: 14 HP
  • Displacement: 0.794 liters
• Bucket:
  • Width: 420 mm (16.5 inches)
  • Capacity: 0.014 m³
• Boom Length: 1350 mm (53 inches)
• Arm Length: 700 mm (27.5 inches)
• Gradeability: 35%
• Maximum Traction Force: 700 kg (1543 lbs)
• Max Dig Radius: 2550 mm (100 inches)
• Max Dig Depth: 1600 mm (65 inches)
• Max Dig Height: 2500 mm (98.4 inches)
• Max Unload Height: 1750 mm (69 inches)

Fuel and Hydraulic Systems

• Theoretical Oil Consumption: 1.3-1.5 liters/hour
• Fuel Type: Gasoline
• Fuel Tank Capacity: 5.5 liters
• Hydraulic Oil Tank Capacity: 12.5 liters
• Main Pump Type/Model: Single pump, Tianjin walking/Shen 306
  • Maximum Flow: 21.6 liters/min
• Multi-way Valve: 8-way manual multi-way valve
• Rated Set Pressure: Tengfei/Shengjie 18 MPa
• Maximum Set Pressure: 20 MPa

Hydraulic Motors

• Travel Hydraulic Motor Type: BM6-315, Paiyi/Zhenjiang Dali
• Displacement: 315 cc
• Slewing Hydraulic Motor Type: BM2-315

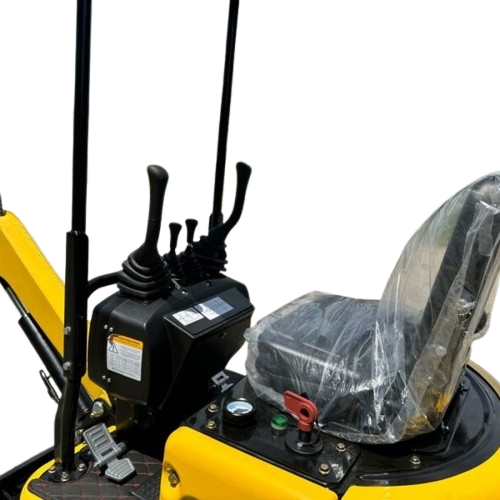

Cab and Comfort

• Ceiling: Available (〇)
• Quick Change: Available (●)
• Air Conditioning: Mechanical tensioning
• Fuel Form: 92# gasoline
