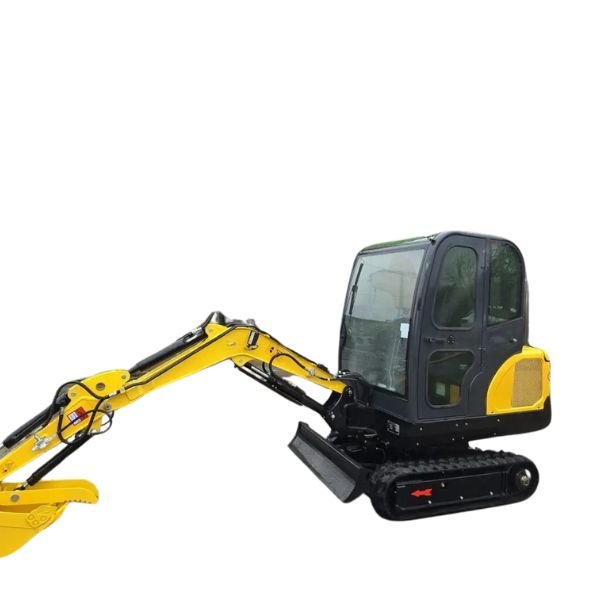

Mini Excavator 2.5T Kubota with Swing boom, AC/Heat and Cab

For Price Please Call

Emission Standard : Tier 5/ EPA 4

Make /Model : KUBOTA

Power /Rotation speed : 14.1kw(20HP)@2000rpm

Number of cylinder : 3

*** TRACK SYSTEM***

Maximum Travel speed : 3.5km/h

Width of track shoe(Rubber & steel track) : 230mm/ 9 inch

Number of track shoe per side : 38 pcs

Number of upper roller/ bottom roller (perside) : 0/4

*** PERFORMANCE PARAMETER***

Standard bucket capacity : 0.06m3

Swing speed : 10~12 rpm

Max. Grade ability : 35°

Max. Bucket digging force : 14KN

Max. Arm digging force : 10KN

Hydraulic system pressure : 18Mpa

Machine weight : 2500kg/ 5500 LBS

*** MACHINE SIZE ***

Overall dimension (L*W*H) : 3865mm*1050mm*2270mm (152x 41×89 inch)

Axle base(Track length on ground) : 1230mm/ 48.4 inch

Track gauge : 820mm/ 32.2 inch

Min.Ground clearance : 210mm/ 8.2 inch

Swing radius at tail : 1125mm/ 44.2 inch

*** WORKING RANGE***

Max. Digging height : 3365mm/ 132.4 inch

Max. Dumping height : 2385mm/ 93.8 inch

Max. Digging depth : 2050mm/ 80.7 inch

Max. Vertical digging depth : 1725mm/ 67.9 inch

Max. Digging radius : 3860mm/ 144.8 inch

Min .swing radius : 1720mm/ 67.7 inch

Max. Lifting height of blade : 230mm/ 9 inch

Max. Cutting depth of blade : 275mm/ 10.8 inch

Boom swing angle(Left) : 75°

Boom swing angle(Right) : 45°
