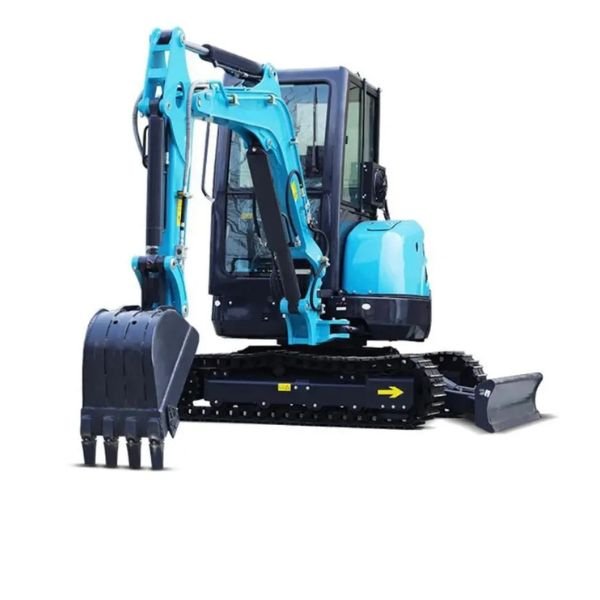

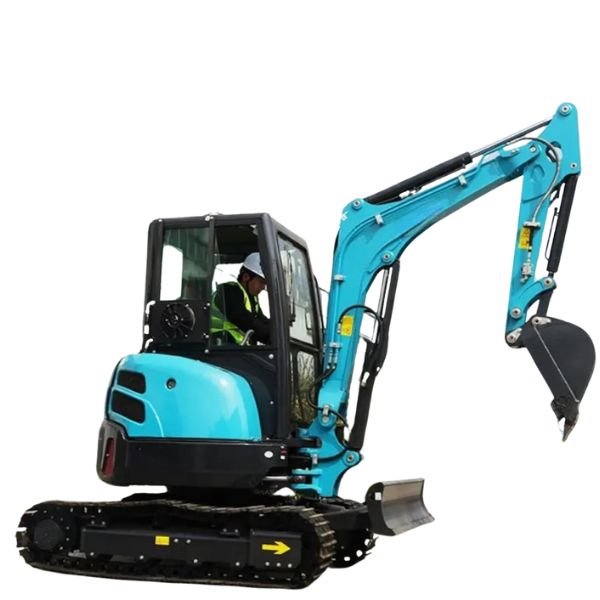

Zero Turn Excavator 3.5 Ton With Swing Boom, AC and Hydraulic Thumb

For Price Please Call

Parameters:
* Operating Weight: 3515KG
* Bucket Capacity: 0.09 m3
* Bucket Width: 520/470mm

Engine:
* Brand: Kubota V 1505 / Yanmar 388F
* Power: 18.5KW
* Cylinder Number: 4-Cylinder, 4-Stroke
* Ground Pressure (KPa): 28 (0.2)
* Bucket Excavating Force (KN) ISO: 26.5 KN
* Volume of Fuel Tank: 40L

Dimensions:
* Length * Width * Height: 448515502440mm
* Track Length: 2100mm
* Height of Bulldozer Blade: 335mm
* Track Width: 300mm
* Track Center Distance: 2100mm
* Min. Ground Clearance: 290mm

Performance Specifications:
* Maximum Excavating Height (mm): 4600 mm
* Maximum Unloading Height (mm): 3175 mm
* Maximum Digging Depth (mm): 2880 mm
* Maximum Vertical Wall Excavating Depth (mm): 2305mm
* Maximum Excavation Distance: 4965 mm
* Maximum Excavation Ground Distance: 4845 mm
* Minimum Radius of Gyration of Front Section: 2035 mm
* Minimum Radius of Gyration at Rear End: 790 mm
* Maximum Bulldozing Height: 360 mm
* Maximum Bulldozing Depth: 340 mm
* Minimum Radius of Gyration at Rear End: 790 mm
